Roof Mapping with CAD

Accurate roof measurements and CAD-ready data for fast, reliable rooftop PV design.

Get a Quote Book a Demo

Survey-grade results

Preview coming soon

Aerial pictures and movies

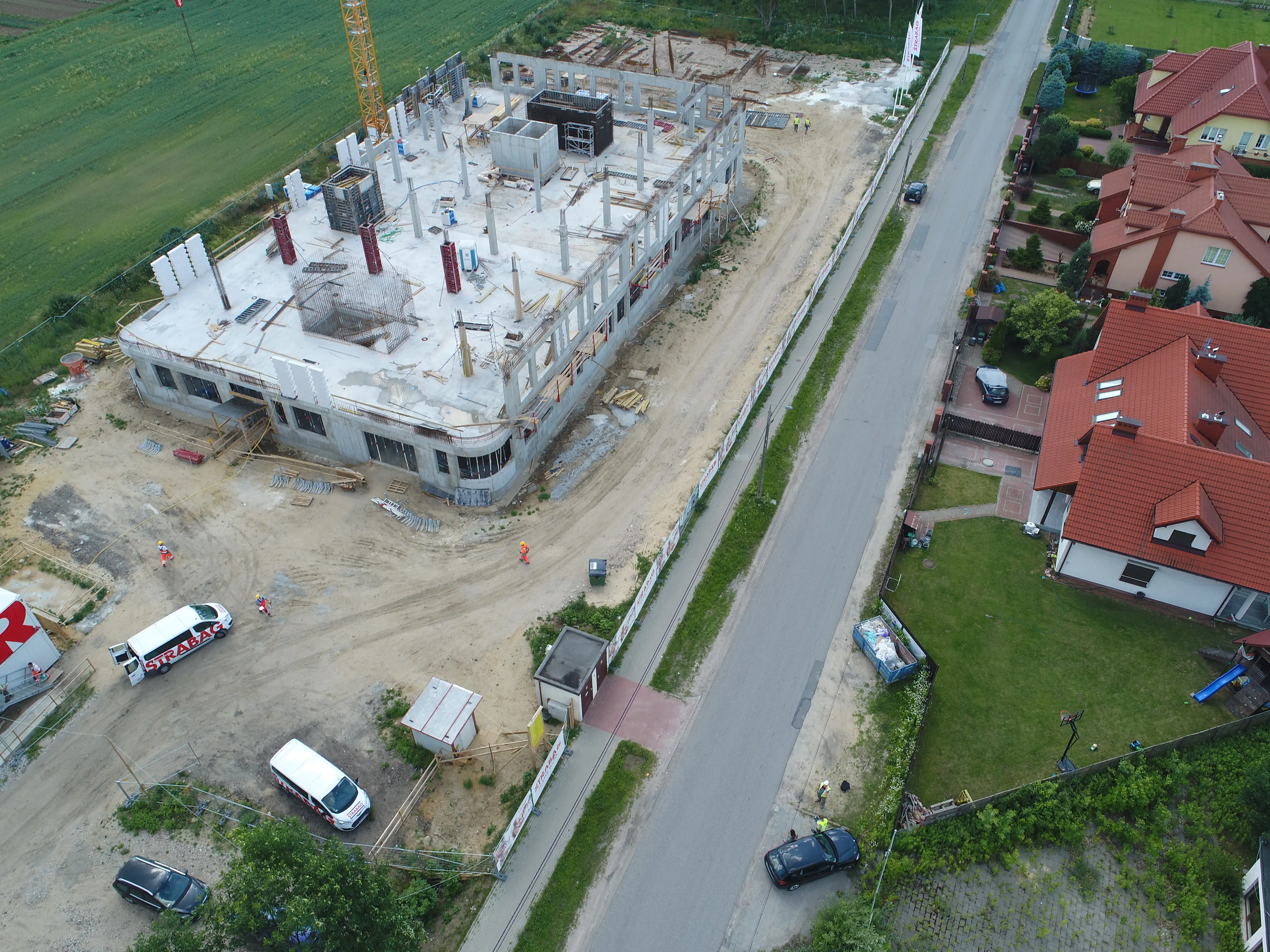

CAD Model Roof - 3D

Preview coming soon

Point Cloud from Photogrammetry - 3D

Preview coming soon

Digital Surface Model - 2.5D

Preview coming soon

Orthomosaic - 2D

Preview coming soon

Unprocessed Pictures

Preview coming soon

Web Viewer

The standard specifications for our roof mapping with CAD deliverables are 1.5 cm GSD resolution and 2 cm relative accuracy in XYZ. All deliverables are provided in formats compatible with standard inspection, reporting and asset management workflows.

Pricing

Area Est. Price

0.1 ha € 850 min.

0.5 ha € 850 min.

1.0 ha € 850 min.

3.0 ha € 850 min.

5.0 ha € 1,100

10.0 ha € 1,986

50.0 ha € 7,372

All-inclusive. Exact price depends on location and terrain.

About this product

Designing rooftop PV systems often relies on outdated plans, manual measurements or incomplete data. This leads to design iterations, site revisits and avoidable delays. Roof mapping with CAD replaces those manual measurements with precise drone data and delivers CAD-ready outputs that design teams can use immediately.

Standard specifications: 1.5 cm GSD resolution.

Typical use cases

Rooftop PV feasibility studies Precise panel layout and system sizing Engineering and design workflows (CAD-ready) Reducing site visits and design revisions

Get a quote

Draw your area on the map or upload coordinates to get an instant price.

What happens next?

After your request, the Inflights Desk reviews your project and, if needed, reaches out to clarify requirements. We take care of the rest.
